Atos Axis Controls

Servoproportional directional valves with on-board digital axis card. Off-board digital axis cards in DIN-rail format. Hydraulic servoactuators, that integrate servocylinders and axis control valves, to fully manage the motion cycle.

Image	Type / Mounting/ Format	Part Number	Description	Pressure (bar)	Max Flow (lpm)	Size	Datasheet	Safety Requirements
	Cetop subplate mounted	DLHZO-TEZ	Proportional directional with transducer, direct acting, sleeve, zero overlap, on board digital axis controller with optional fieldbus, P/Q & safety functions	350	70	6	FS610	FY100	FY200
	Cetop subplate mounted	DLKZOR-TEZ	Proportional directional with transducer, direct acting, sleeve, zero overlap, on board digital axis controller with optional fieldbus, P/Q & safety functions	315	160	10	FS610	FY100	FY200
	Cetop subplate mounted	DHZO-TEZ	Proportional directional with transducer, direct acting, zero overlap, on board digital axis controller with optional fieldbus, P/Q & safety functions	350	80	6	FS620	FY100	FY200
	Cetop subplate mounted	DKZOR-TEZ	Proportional directional with transducer, direct acting, zero overlap, on board digital axis controller with optional fieldbus, P/Q & safety functions	315	180	10	FS620	FY100	FY200
	Cetop subplate mounted	DPZO-LEZ	Proportional directional with 2 x  transducer, pilot operated, zero overlap, on board digital axis controller with optional fieldbus, P/Q & safety functions	350	3500	10	FS630	FY100	FY200
	DIN Rail	Z-BM-TEZ	Off-board digital driver & axis card for servoproportional directionals, fieldbus, P/Q control, DIN-rail format	-	-	-	GS330	-	-
	DIN Rail	Z-BM-LEZ	Off-board digital driver & axis card for servoproportional directionals, fieldbus, P/Q control, DIN-rail format	-	-	-	GS330	-	-
	DIN Rail	Z-BM-KZ	Off-board digital axis card for servoproportional directionals, fieldbus, P/Q control, DIN-rail format	-	-	-	GS340	-	-

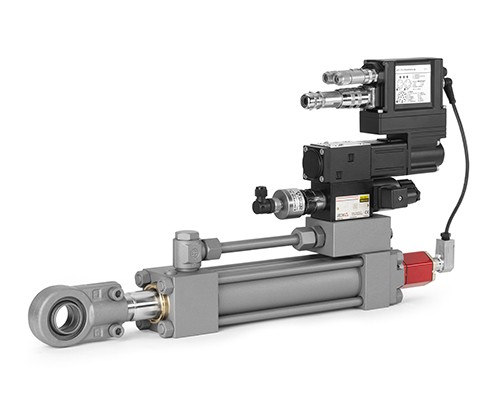

	Cylinder	AZC servoactuators	Servocylinder plus servoproportional directional with on-board driver & axis card, fieldbus, p/Q control	250	-	-	FS700	-	-
