Products may vary from image.
This assembly is designed for load holding applications. A compact banjo mounted design is used which allows for fitting direct onto the loaded port of an actuator. When de-energised, oil is blocked from flowing in both directions and when energised, oil can pass through either path.
Providing further details on product specifications and dimensions
| Part no. | Symbol | Description | Max. flow (lpm) | Max. pressure (bar) | Price | Qty | Download symbols |
|---|---|---|---|---|---|---|---|

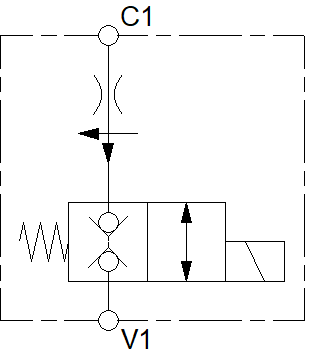

| RF-3535I0008HC12A |  | BANJO LOCK, BI-DIR. NC, 8LPM PCFC, G038, 12VDC | 17 | 240 | £108.66 | ||
| RF-3535I0008HC24A |  | BANJO LOCK, BI-DIR. NC, 8LPM PCFC, G038, 24VDC | 17 | 240 | £108.91 | ||

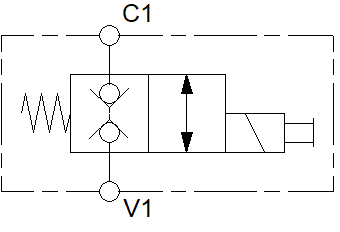

| RF-3535I0K00HC12A |  | BANJO LOCK VALVE, BI-DIR. NC, OVERIDE G038, 12VDC | 17 | 240 | £102.92 | ||
| RF-3535I0K00HC24A |  | BANJO LOCK VALVE, BI-DIR. NC, OVERIDE G038, 24VDC | 17 | 240 | £103.18 |
Please note that prices displayed are exclusive of carriage and VAT. These will be calculated and added at checkout.
