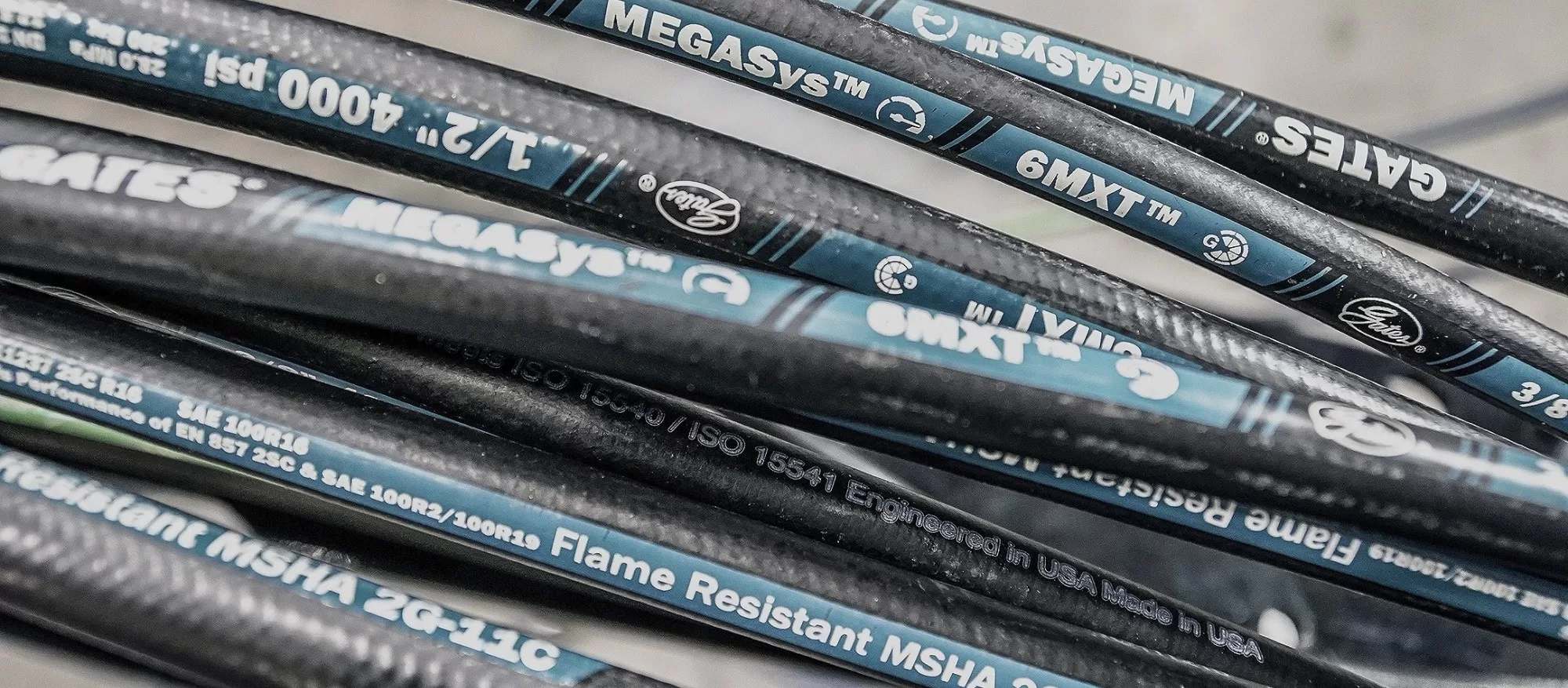

Hydrastore’s stockholding of global leaders Gates’ hoses and associated components is summarised in the table below. With an extensive range of hose types and sizes the table shows at a glance the pressure capability for each hose size along with the types of hose ends required.
Each hose name is linked to a further detailed specifications page. See our parts catalogue for a comprehensive selection of inserts to meet the application requirements. More inserts are also available upon request.
| Hose | Hose Type | Hose diameter | Ferrule required | Insert Type | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4” (-4) | 3/8” (-6) | 1/2” (-8) | 3/4” (-12) | 1” (-16) | 1 1/4” (-20) | 1 1/2” (-24) | 2” (-32) | |||||
|
Pro1T 1 | SC (1 wire compact) | 225 | 180 | 160 | 105 | 88 | Yes | EX | |||
|
|
ProV | 2SC (2 wire compact) | 400 | 330 | 275 | 215 | 165 | Yes | EX | |||
|
M3K | Constant pressure wire braid | 225 | 225 | 225 | 225 | 225 | No | G | |||
|
M4K | 280 | 280 | 280 | 280 | No | G | |||||
|
MXG5K-XTP | 350 | 350 | 350 | 350 | Yes | GS | |||||
|
EFG3K | Multi Spiral | 210 | Yes | GS | |||||||
| 210 | Yes | GSP | ||||||||||
|
EFG5K | 350 | 350 | 350 | 350 | 350 | Yes | GS | ||||
|
EFG6K | 420 | 420 | 420 | 420 | 420 | Yes | GS | ||||
|
GMV | Suction | 24 | 20 | 17 | No | G | |||||
| 10 | 10 | Yes | GSP | |||||||||
