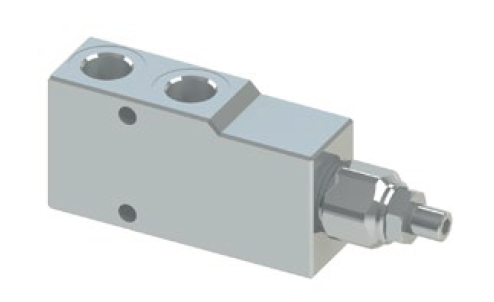

Hydrastore Single Over Centre Valve - VBCL - For Open Centre

Products may vary from image.

Product information

  • Mineral oil ISO 6743/4 (DIN 51524)
  • Oil viscosity 15-250 mm /s (15 to 250 cSt)
  • Max contamination index with filter ISO 4406:1999 Classe 19/17/14
  • Oil temperature -20°C +80°C -4°F + 176°F
    Ambient temperature -20°C +50°C -4°F + 122°F
  • It is necessary to use a filter to protect the valve (advised filtration 15 µm)

Product Specification Documents

Providing further details on product specifications and dimensions

Ordering chart

Part no.SymbolDescriptionSize (BSP)Max. flow (lpm)Max. pressure (bar)PriceQtyDownload symbols
VBCL-120-1-SVBCL-120-1-S symbol1/2" BSP SINGLE OVER CENTRE VALVE 30-210 BAR OPEN 1/2"60350£50.88
VBCL-380-1-SVBCL-380-1-S symbol3/8" BSP SINGLE OVER CENTRE VALVE 30-210 BAR OPEN3/8"40350£43.31

Please note that prices displayed are exclusive of carriage and VAT. These will be calculated and added at checkout.
