Atos On/ Off Pressure Valves Technical Datasheets

On/ Off Pressure Valves Technical Datasheets illustration

Products may vary from image.

Product information

Type / Mounting/ Format Part Number Description Pressure (bar) Max Flow (lpm) Size Atos Table

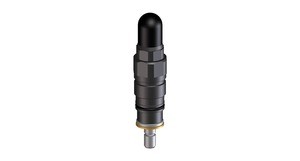

Cartridge CART Pressure relief, direct acting 230-500 2.5-120 G012, M35 CO10
Cartridge CART ARE Relief, direct, poppet type, screw-in 400-420 100-120 M32-M35 CO10
Line mounted ARE Pressure relief, direct acting 350-500 40-100 G014, G012 CO20
Line mounted ARAM Pressure relief, pilot operated 350 350-500 G034, G114 CO45

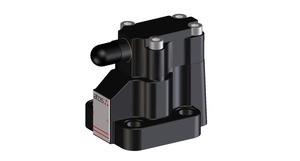

Subplate mounted AGAM Pressure relief, pilot operated 350 200-600 10, 20, 32 C066
Line mounted REM Pressure relief, pilot operated 350 200-601 SAE 3/4", 1", 1 1/4" C073
Subplate mounted AGIR Pressure reducing valve, pilot operated 350 160-400 10, 20, 32 C070
Subplate mounted AGIS Sequence valve, direct acting, spool  350 200-600 10, 20, 32 C070
Subplate mounted AGIU Unloading valve, venting options 350 100-300 10, 20, 32 C070
