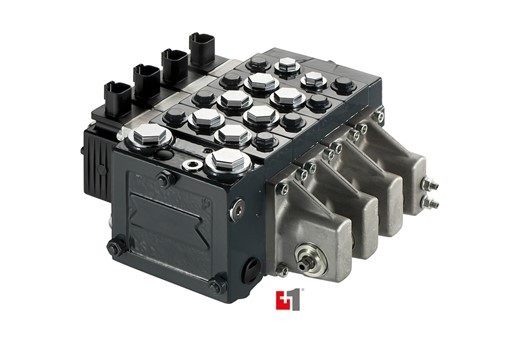

Danfoss PVG 16 Proportional Valves

Product information

Incorporating a microcontroller for closed loop control, PVE series 6 delivers excellent spool control and built-in fault monitoring to the PVG 16. High tolerance towards temperature variations ensures a robust, reliable valve performance in all conditions.

Product features

• Flow rating up to 65 l/min [17.2 US gal/min]
• Work port pressure up to 400 bar [5,800 psi]
• Actuator with integrated float function for increased safety
• Actuator with closed loop control for built-in fault monitoring
• Symmetrical and asymmetrical spools
• Compensator and LS pressure limitation for advanced application requirements
• Available with on/off and proportional CAN actuator for simplified machine wiring and bi-directional communication

Key applications

PVG 16 targets on a broad range of applications in the mobile machinery market. Typical applications are municipal vehicles, agricultural machinery, small cranes, construction machinery and road building applications.

Lower total system costs - machine benefits

• Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system life
• Optimized system architecture and unique machine features due to design flexibility and modular concept
• Improved efficiency obtained by precise matching of performance with flow requirements
• Reduced cooling and fuel requirements
• Low machine downtime supported by high quality products, modular concept and advanced product feedback
• Optimized production processes and less inventory due to modular concept and short delivery time

Product Specification Documents

Providing further details on product specifications and dimensions

• PVG 16 Datasheet
• PVG 16 Technical Information
