Atos On/ Off Safety Valves Technical Datasheets

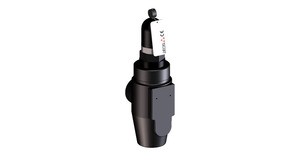

On/ Off Safety Valves Technical Datasheets illustration

Products may vary from image.

Product information

Type / Mounting/ Format Part Number Description Pressure (bar) Max Flow (lpm) Size Atos Table
Cetop subplate mounted DHE/FV Safety directional valve, direct acting, with spool position monitoring 350 80 06 E015
Cetop subplate mounted DKE/FV Safety directional valve, direct acting, with spool position monitoring 350 150 10 E025
Cetop sandwich module HF/FV Safety directional valve with spool position monitoring 350 60 06 EY050
Cetop subplate mounted DPHE/FV Safety directional valve, pilot operated, with spool position monitoring 350 160-701 10, 16, 25, 32 E085
Cartridge JO-DL/FV Safety normally closed 2 way, pilot operated, inductive position switch 350 40-300 ISO 08, 16 EY105
Cartridge LIFI Safety cartridge, pilot operated, 2 way, poppet, direct acting, with intermediate inductive proximity sensor element 420 200-1800 16-50 EY120
Cartridge LIDA/FV Safety cartridge, pilot operated, 2 way, poppet, with inductive position switch 350 200-1370 16-50 EY120
Cartridge LIDAS/FV Active safety cartridge, pilot operated, 2 way, poppet, with inductive position switch 350-420 200-1800 16-50  EY120
Cartridge CART M/PED Pressure relief, direct acting, PED certified 350-420 2.5-150 G 1/2" / M35X 1,5  CY010
Cartridge CART ARE/PED Pressure relief, direct acting, PED certified 420 100-150 M32-M45 CY010
Line Mounted ARE/PED Pressure relief, direct acting, PED certified 420 60-100 G 1/4", G 1/2" C020
Line Mounted ARAM/PED Pressure relief, pilot operated, PED certified 350 350-500 G 3/4", G 1 1/4 C045
Subplate mounted AGAM/PED Pressure relief, pilot operated, PED certified 350 200-600 10, 20, 32  C066
