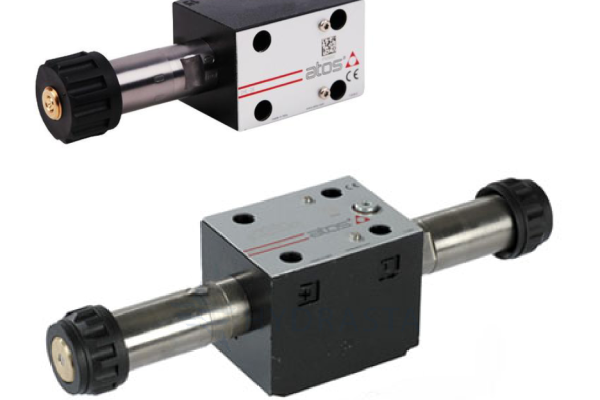

Atos DHE Cetop 03 Directional Control Valves
- Spool type, two or three position direct operating valves.
- Solenoid tubes.
- Wet type screwed tube, different for AC and DC power supply, with integrated manual override pin.
- Interchangeable coils, specific for AC or DC power supply, easily replaceable without tools. Purchased separately
- Wide range of interchangeable spools.
- Mounting surface: ISO 4401 size 06
- Max flow: 50 I/min
- Max pressure: 350 bar.
- Note: Valves sold without coils. Coils ordered separately.
