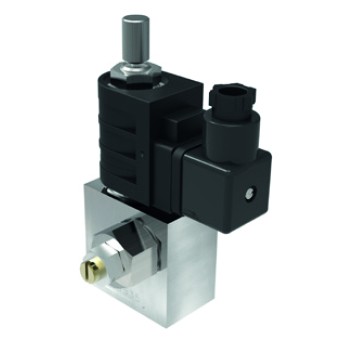

This assembly is designed for single acting cylinder applications where a lift, hold and lower operation is required. A compact banjo mounted design is used which allows for fitting direct onto the loaded port of a cylinder. In the first part of the cycle oil is allowed to pass freely through the valve assembly with the solenoid valve being energised or de-energised depending on valve selection / desired operation. When stopped, the solenoid valve is de-energised thus holding the cylinder in place and preventing the cylinder from being able to move back. The final part of the cycle sees the solenoid valve being energised allowing the cylinder to return back to its initial position.
Providing further details on product specifications and dimensions
Part no. | Symbol | Description | Max. flow (lpm) | Max. pressure (bar) | Price | Qty | Download symbols |
---|---|---|---|---|---|---|---|
RF-3535B0008HC12A | BANJO LOCK VALVE, NC, 8 LPM PCFC, G038, 12VDC | 30 | 240 | £99.20 | |||
Symbol filesStandardised hydraulic symbols for this part number, as defined by The International Standards Organisation - ISO 1219-1:2012 | |||||||
RF-3535B0008HC24A | BANJO LOCK VALVE, NC, 8 LPM PCFC, G038, 24VDC | 30 | 240 | £99.45 | |||
Symbol filesStandardised hydraulic symbols for this part number, as defined by The International Standards Organisation - ISO 1219-1:2012 | |||||||
RF-3535B0M00HC12A | BANJO LOCK VALVE, NC, OVERIDE, G038, 12VDC | 30 | 240 | £93.46 | |||
Symbol filesStandardised hydraulic symbols for this part number, as defined by The International Standards Organisation - ISO 1219-1:2012 | |||||||
RF-3535B0M00HC24A | BANJO LOCK VALVE, NC, OVERIDE, G038, 24VDC | 30 | 240 | £93.71 | |||
Symbol filesStandardised hydraulic symbols for this part number, as defined by The International Standards Organisation - ISO 1219-1:2012 |
Please note that prices displayed are exclusive of carriage and VAT. These will be calculated and added at checkout.
