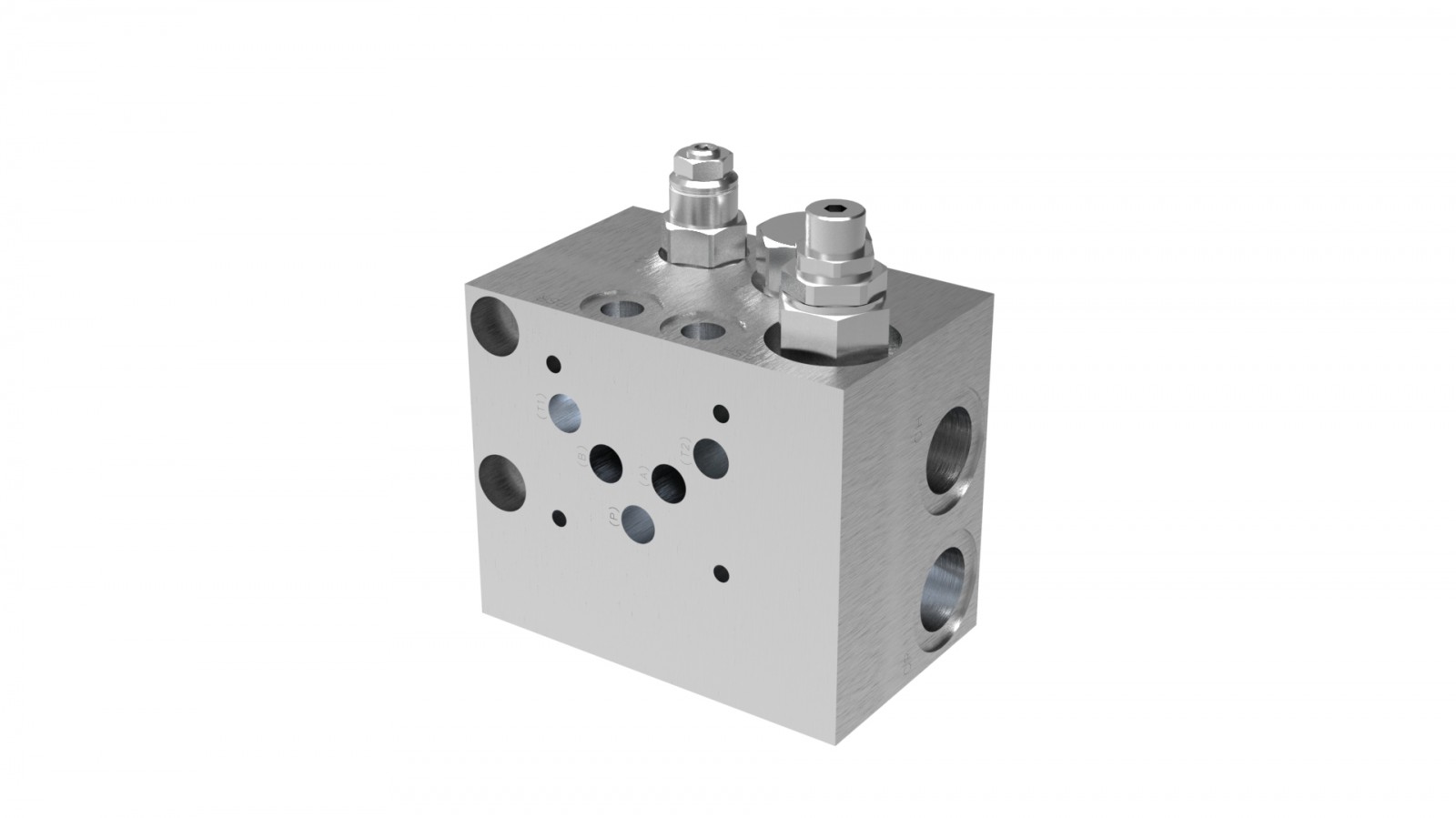

Hydrastore Cylinder Regen Manifold - Cetop 05

This regen manifold is designed for cylinder applications where a fast approach under light load that switches to high force low speed is required. This arrangement optimises power consumption, reducing electric motor size. The regenerative function combines pump flow with the oil displaced from the annulus of the cylinder. In the extend mode the cylinder starts at a fast speed: As load increases the regenerative flow is unloaded to tank with the remaining cylinder stoke being completed by the low flow higher pressure pump. In retract the cylinder is allowed to retract at the normal speed (pump flow rate).
