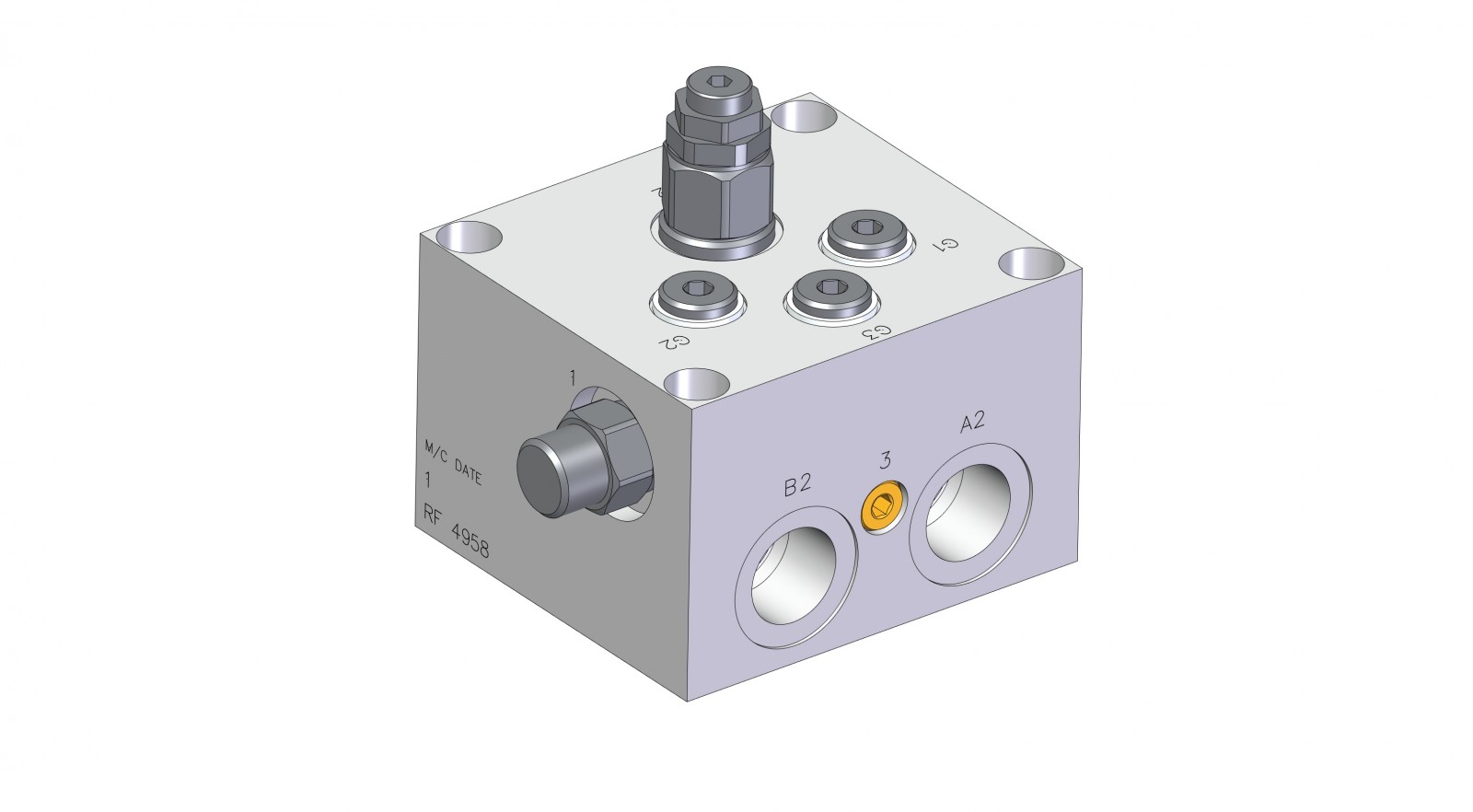

Hydrastore Hot Oil Shuttle Assembly

This manifold is used within hydrostatic transmission circuits to remove heat and any potential contamination. The valves are fitted into the service lines, during operation the hot oil flushing circuit allows a discharge of oil from the low pressure service to tank, oil pushed from the service lines via the charge pump. Depending on the application either a fixed orifice or relief valve can be used to control discharge characteristics.

Features

• 150 lpm max. – service lines
• 50 lpm max. – charge pump
• Compact line mount design
• 1/2” or 3/4” BSP Ports
