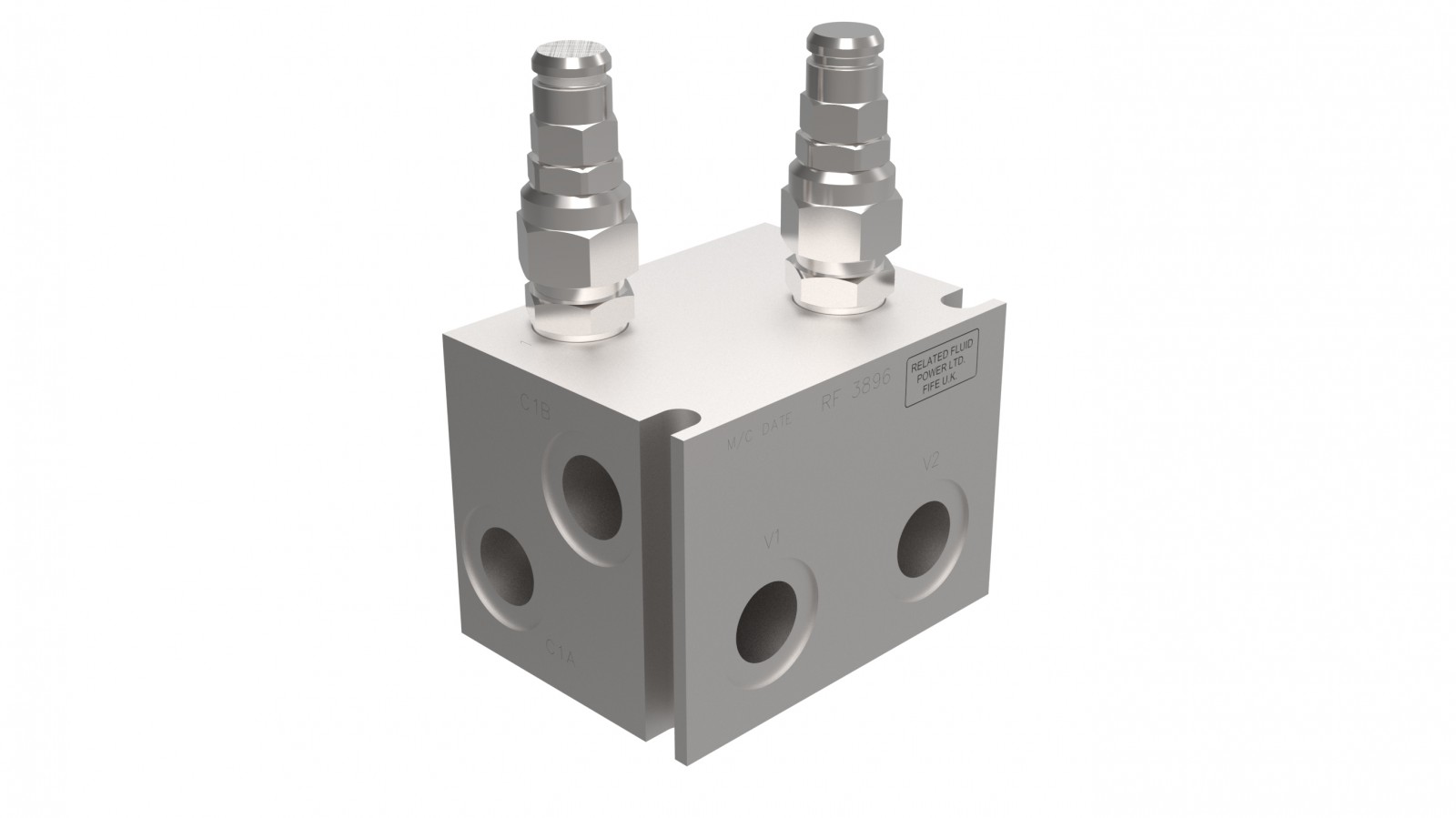

Hydrastore Dual Sequence Control Assembly

This assembly is designed for sequencing of double acting cylinder applications, where one cylinder must extend/retract before a second cylinder moves.

In the first part of the cycle, oil flows into V1 and out of C1A until cylinder C1 is extended. Return flow from the opposite side of the cylinder, free flows through check valve 4 and out of V2. Sequence valve 1 then opens at a set pressure allowing flow out of port C2B, extending cylinder C2. This operation then also works in the same principle when oil flow is supplied in port V2.

A compact design allows this manifold control to easily integrate into many hydraulic systems negating the need for multiple line mounted valves, associated pipework and assembly time whilst also reducing potential leak points.

Features

• Aluminum body (Anodised)
• Adjustment range 50 – 220 bar (other ranges available upon request)
• Atmospherically vented sequence valves are used and are immune to system back pressures
• Assembly weight: Aluminium 1.62 Kg
• Seal Kit: SK-RF3896
