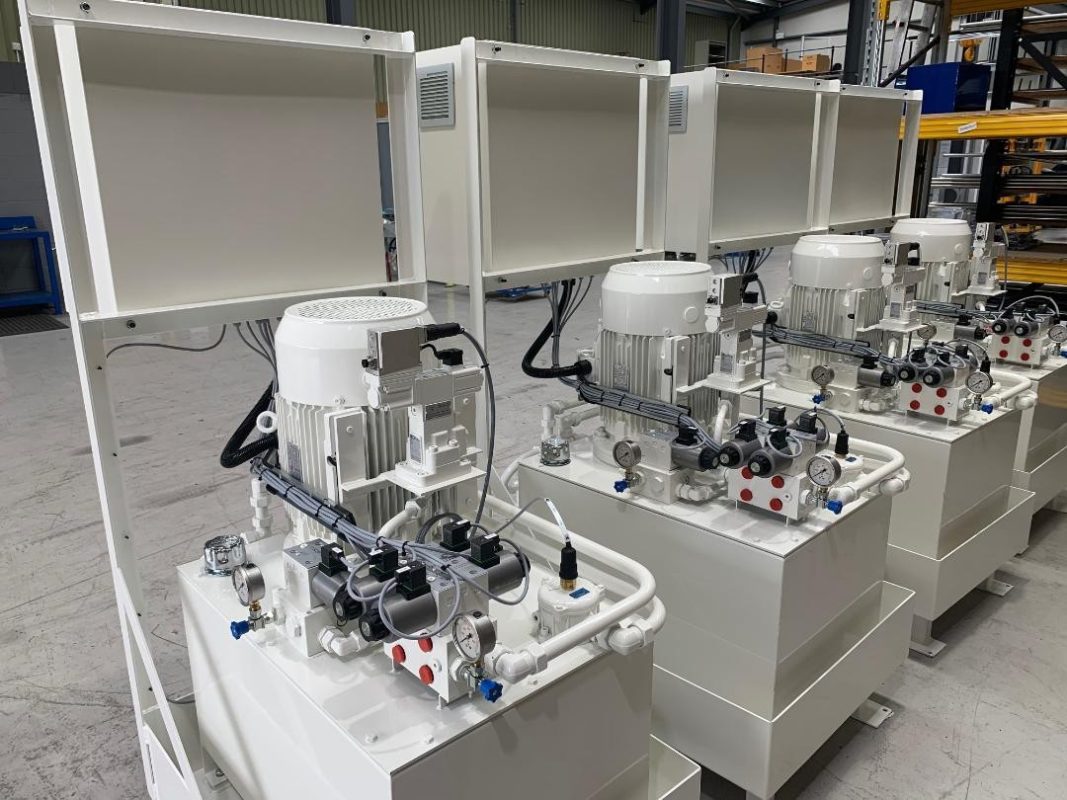

The 7 basic components of a hydraulic system

A hydraulic system is the powerhouse behind countless machines we use in our daily lives, from car brakes to construction equipment. But what makes these systems so powerful? It’s all in the components. Understanding hydraulic system components is key to designing efficient, high-performing machinery, whether for industrial applications or mobile hydraulic systems.

Here, we’ll break down each essential component, its function, and how it works together to create the hydraulic power that drives much of today’s machinery.

What is a Hydraulic System?

A hydraulic system is designed to transfer energy through an incompressible fluid, typically hydraulic oil or specialised hydraulic fluids. By forcing this fluid through various components, a hydraulic system can convert mechanical energy into hydraulic force and then back again, allowing for significant mechanical power to be applied where needed.

These systems rely on precise control of fluid flow and pressure to operate efficiently. Each component must work seamlessly together to avoid system failure.

7 Key Hydraulic Components When Designing Hydraulic Systems

1. Hydraulic Fluid

   The hydraulic fluid is the lifeblood of the entire system. It transfers energy, lubricates, and cools the system’s components. The type of hydraulic fluid used can vary depending on the type of hydraulic system. Still, standard options include mineral-based oils, synthetic fluids, and even biodegradable options for environmentally conscious applications.

   Key properties of hydraulic fluid:

   • Viscosity: Determines flow characteristics and efficiency.
   • Thermal stability: Prevents breakdown under high temperatures.
   • Contaminant resistance: Ensures a longer life for system components.

2. Pump

   The hydraulic pump is responsible for converting mechanical energy into hydraulic energy by moving the hydraulic fluid throughout the system. Pumps come in different forms, each suited to specific applications:

   • Gear pumps: Simple, durable, and commonly used in .
   • Vane pumps: Provide smooth operation and handle moderate pressures in many applications.
   • Piston pumps: High-pressure capability, suitable for heavy-duty machinery.

   The type of pump you choose directly affects system pressure and flow rate, vital for achieving the desired performance.



3. Reservoir

   The hydraulic fluid reservoir is where the system stores and maintains the hydraulic fluid. This component also allows air bubbles to escape, ensuring smooth operation by keeping the fluid uncontaminated. The reservoir plays a significant role in system health by:

   • Providing a place for cooling: The reservoir dissipates heat, preventing the fluid from overheating.
   • Removing contaminants: Many house built-in filters, the reservoir helps filter out debris that could damage other components.
   • Maintaining system pressure: Reservoirs are carefully designed to keep fluid velocity stable and fluid levels constant.

4. Valves

   Hydraulic valves regulate the flow and direction of hydraulic fluid, playing an essential role in system control. Several types of valves are typically involved:

   • Directional control valves: Direct the fluid’s path, determining where the fluid flows within the system.
   • Pressure control valves: Keep pressure within safe limits, preventing overloading of components.
   • Flow control valves: Adjust the speed of fluid flow, which in turn controls the speed of actuators.

   You can ensure optimal system performance and avoid costly downtime by carefully selecting and maintaining valves.



5. Actuator

   Actuators convert the hydraulic energy back into mechanical energy. They come in two main types:

   • Hydraulic cylinders provide linear motion and are commonly used in heavy-duty applications like construction equipment and industrial presses.
   • Hydraulic motors create rotary motion and are often found in machinery that requires continuous, powerful rotation, such as in conveyor belts and pumps.

   These components convert hydraulic energy into the motion and force required by specific applications.

6. Hydraulic Hoses and Fittings



   Hydraulic hoses and fittings connect different hydraulic system parts, ensuring fluid flow between components. The quality of these hoses impacts:

   • System efficiency: Poor-quality or under sized hoses can result in leaks and reduced performance.
   • Safety: Correctly applied and high-quality hoses can handle the system’s pressure without bursting, ensuring safe operation.
   • Durability: High abrasion resistance and correct application extend the system’s lifespan by reducing pressure drops and excessive heat.

7. Filter

   A filter is a critical component that keeps contaminants out of the hydraulic fluid, which is key for system efficiency and longevity. There are several types of filters, including inline and return filters, each can be positioned to catch debris before it causes damage.

   Filters are essential for maintaining optimal fluid performance, particularly in heavy-duty applications where fluid contamination and oil degradation can lead to expensive breakdowns.

Hydraulic System Components in Action

When a hydraulic system is operational, each component works in unison to achieve the desired output:

• Fluid moves from the reservoir to the pump.
• Most pumps push the fluid through valves, which direct it to an actuator.
• The actuator converts the fluid’s energy into motion, whether linear movement in a cylinder or rotary motion in a hydraulic motor.
• The filter removes any contaminants as the fluid cycles to and from the reservoir.

This cycle continues, with each part ensuring that system pressure, flow rate, and mechanical energy are balanced for the task at hand.

Choosing the Right Hydraulic System Parts

Selecting the right components for a hydraulic system can make all the difference in system efficiency and longevity. Consider these factors:

1. Type of Application

   Different hydraulic systems require different setups. For example:

   • Mobile hydraulic systems may need lightweight components, therefore operating at high pressures with lower flows.
   • Industrial hydraulic systems often prioritise durability and long life expectations.

2. Fluid Compatibility

   Choose a hydraulic fluid compatible with the other system components to prevent premature wear and corrosion. Some applications require specific fluid types, such as biodegradable options for environmentally sensitive areas.

3. System Pressure Requirements

   Selecting components that can handle the required system pressure is essential. Pumps, hoses, and actuators must be rated for the specific pressures your application demands.

4. Efficiency Goals

   By carefully choosing components like pressure control valves, flow control valves, and high-quality hoses, you can optimise system performance for energy efficiency, resulting in significant cost savings over time.

5. Maintenance Needs

   Regular maintenance is critical to keeping a hydraulic system running smoothly. To reduce downtime and extend component life, consider built-in filters, accessible reservoirs, and durable fittings.

Understanding Hydraulic System Maintenance

Maintaining a hydraulic system involves routine checks on each component to ensure efficient operation and prevent system breakdowns. Key maintenance tasks include:

• Regular fluid checks: Monitor fluid levels and viscosity to ensure proper fluid composition.
• Filter replacement: Replace filters regularly to keep contaminants out of the system.
• Pressure testing: Regularly test for leaks and pressure performance, low pressure can signify component degradation.
• Hose inspection: Check hoses for cracks and wear that could lead to failure.
• Valve calibration: Ensure valves are appropriately calibrated to maintain accurate flow and direction control.

Why Quality Matters in Hydraulic System Components

Investing in high-quality hydraulic components is essential for any operation that depends on hydraulics. Quality parts mean:

• Reduced system failure: Lower-quality parts often lead to breakdowns, which can be costly and dangerous.
• Improved efficiency: High-quality components operate smoothly, reducing energy waste and increasing productivity.
• Extended lifespan: Durable components need less frequent replacement, saving money in the long run.

When you know the fundamental components and their roles in a hydraulic system, you can make informed decisions that lead to optimal system performance and longevity.

Every hydraulic system is a unique combination of components, each serving a specific function to ensure smooth, powerful operation. Understanding these components helps ensure the efficiency and reliability of any hydraulic system. Whether you’re dealing with a small mobile unit or a large industrial setup, the right combination of pumps, reservoirs, valves, actuators, and hoses will make all the difference.
