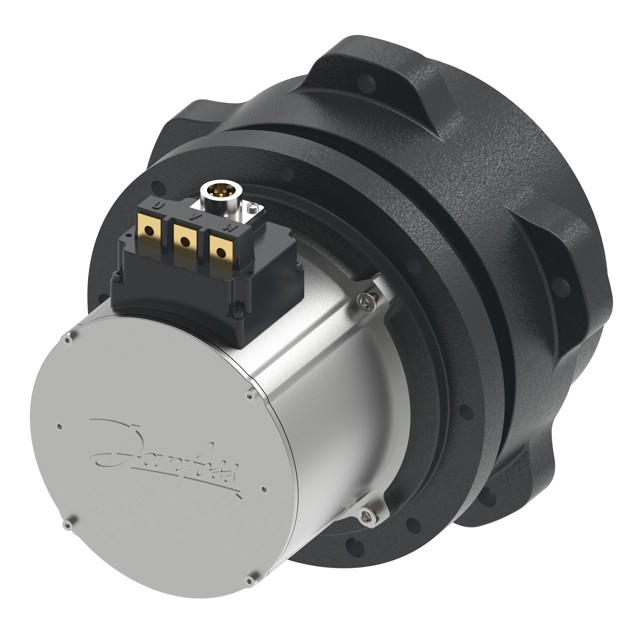

Danfoss eDrive ED-DT130-PT930/1089

Consists of high-power, air cooled, 2in1 electric inverter and two interior permanent magnet electric motors integrated with high-performance gearboxes. Offers small form factor, easy installation, over speed protection, high efficiency and low total cost of ownership – for applications operating at lower voltages, typically 1 to 5 kW.

Features and benefits

• Power range from 850 W to 1900 W, rated voltage 24 VDC and maximum speed up to 4700 rpm
• Compact drive design allows for quick and easy installation
• High torque allows for gradeability up to 30 % and speeds up to 6 km/h (application-specific)
• IP67 enclosure class to maximise reliability in extreme environments
• Robust gearbox design for minimal oil leakage
• Durable and replaceable brake system
