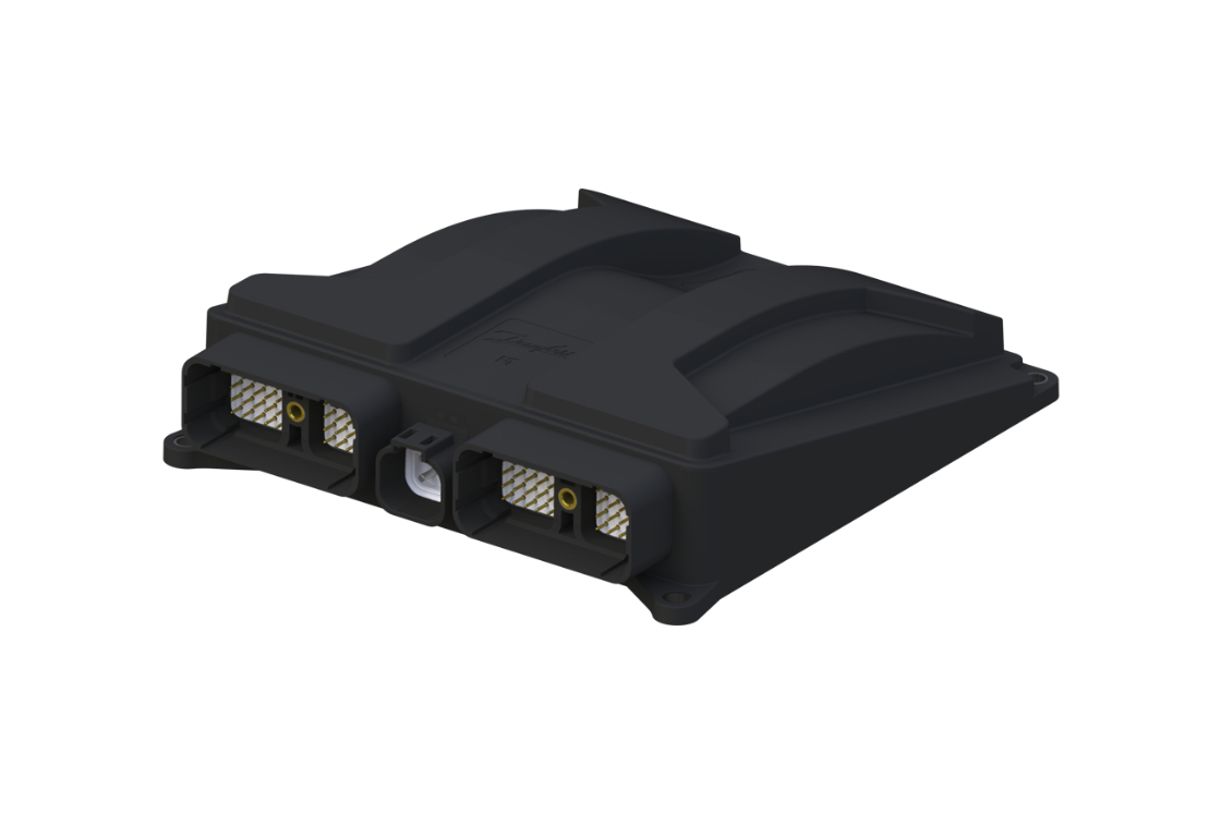

Danfoss PLUS 1 XL Controller

Features and benefits
48 inputs and 40 outputs
• User-programmed with PLUS+1® GUIDE and C Open
• 4 pin DEUTSCH DTP connector for power and ground
• 2 x 50 pin DEUTSCH DRC connectors
• Processor: AURIX 32 bit running at 200 MHz 2.5 MB flash, 240kB
RAM, Lock Step Core
• External memory: ‒ 32 kB EEPROM non-volatile memory ‒ 64 MB
Flash vault memory
• 12 bit analog-to-digital converter
• 7 to 36 Vdc power supply, monitored internally
• Sensor power output for external sensors each are rated at 5 Vdc
to 500mA: ‒ 1x 5V Fixed ‒ 1x 3V to 12V variable
• 3 CAN 2.0B ports • SIL2 compliant
