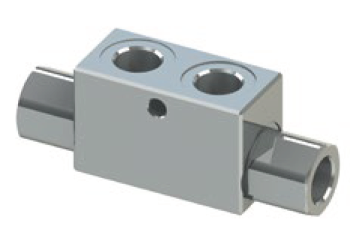

Inline P.O Check
- Mineral oil: ISO 6743/4 (DIN 51524)
- Oil viscosity: 15–250 mm²/s (15 to 250 cSt)
- Max contamination index with filter: ISO 4406:1999 Class 19/17/14
- Oil temperature: -20°C +80°C (-4°F + 176°F)
- Ambient temperature: -20°C +50°C (-4°F + 122°F)
- Max leakage: 0.015 in³/min (5 drops/min)
A filter is required to protect the valve. Recommended filtration level: 15 μm
Product Specification Documents
Showing 12 of 12 products
| Item No. | Name | Max. flow (lpm) | Max. pressure (bar) | Size (BSP) | Stock | Price | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
VRDE-120 | 1/2″ BSP DOUBLE ACTING PILOT CHECK VALVE | 45 | 350 | 1/2" | In Stock | £49.65 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRDE-140 | 1/4″ BSP DOUBLE ACTING PILOT CHECK VALVE | 15 | 350 | 1/4" | In Stock | £28.14 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRDE-340 | 3/4″ BSP DOUBLE ACTING PILOT CHECK VALVE | 70 | 350 | 3/4" | In Stock | £88.24 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRDE-380 | 3/8″ BSP DOUBLE ACTING PILOT CHECK VALVE | 35 | 350 | 3/8" | In Stock | £28.14 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRPE-100 | 1″ BSP SINGLE ACTING PO CHECK VALVE-BARREL TYPE | 150 | 300 | 1" | In Stock | £99.17 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRPE-120 | 1/2″ BSP SINGLE ACTING PO CHECK VALVE-BARREL TYPE | 60 | 350 | 1/2" | In Stock | £49.26 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRPE-140 | 1/4″ BSP SINGLE ACTING PO CHECK VALVE-BARREL TYPE | 25 | 350 | 1/4" | In Stock | £46.71 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRPE-340 | 3/4″ BSP SINGLE ACTING PO CHECK VALVE-BARREL TYPE | 100 | 300 | 3/4" | In Stock | £85.07 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRPE-380 | 3/8″ BSP SINGLE ACTING PO CHECK VALVE-BARREL TYPE | 40 | 350 | 3/8" | In Stock | £45.75 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRSE-120 | 1/2″ BSP SINGLE ACTING PILOT CHECK VALVE | 45 | 300 | 1/2" | In Stock | £41.40 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRSE-140 | 1/4″ BSP SINGLE ACTING PILOT CHECK VALVE | 15 | 320 | 1/4" | In Stock | £23.34 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VRSE-380 | 3/8″ BSP SINGLE ACTING PILOT CHECK VALVE | 35 | 320 | 3/8" | In Stock | £23.34 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
