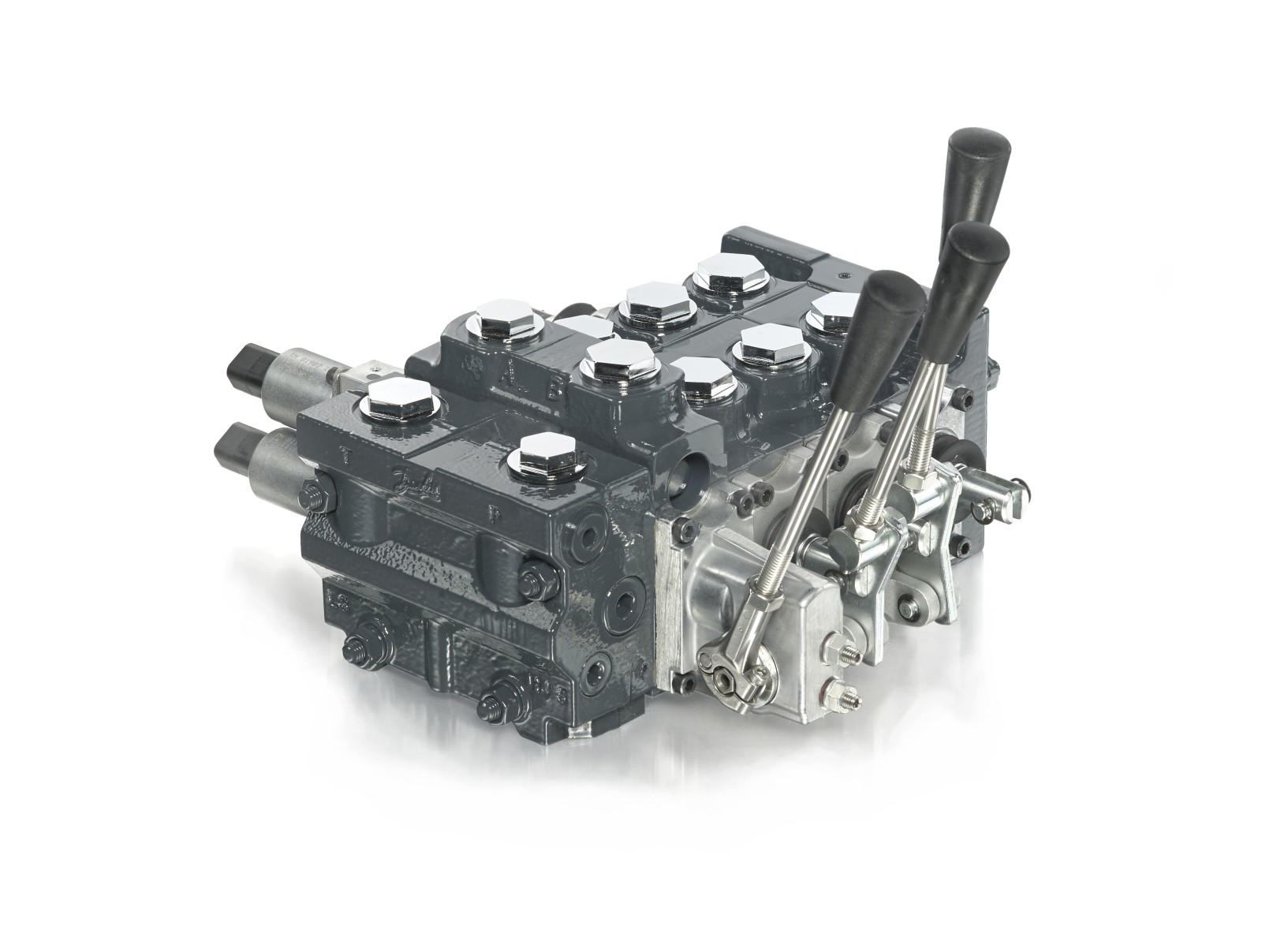

Danfoss ECO 80 Proportional Valves

The ECO 80 LS is a hydraulic load sensing proportional valve group designed to give maximum flexibility in design and build concept. The ECO 80 LS is designed as a load sensing directional control valve which will lead to increased machine performance, higher efficiency, reduced cooling requirements and fuel saving compared to conventional directional control valves.

Benefits and Value

• Load-sensing technology for high efficiency, reduced energy consumption and a long system life
• Reduced time to market with modular design and short lead times
• Wide portfolio of options – from mechanical to electrohydraulic (EH) control
• Combination of mechanical and EH control in same valve configuration
• Fine metering for increase for better controllability and machine performance

Technical Details

• Flow rating up to 80l/min [21 US gal/min]
• Work port pressure up to 320 bar [4,570 psi]
