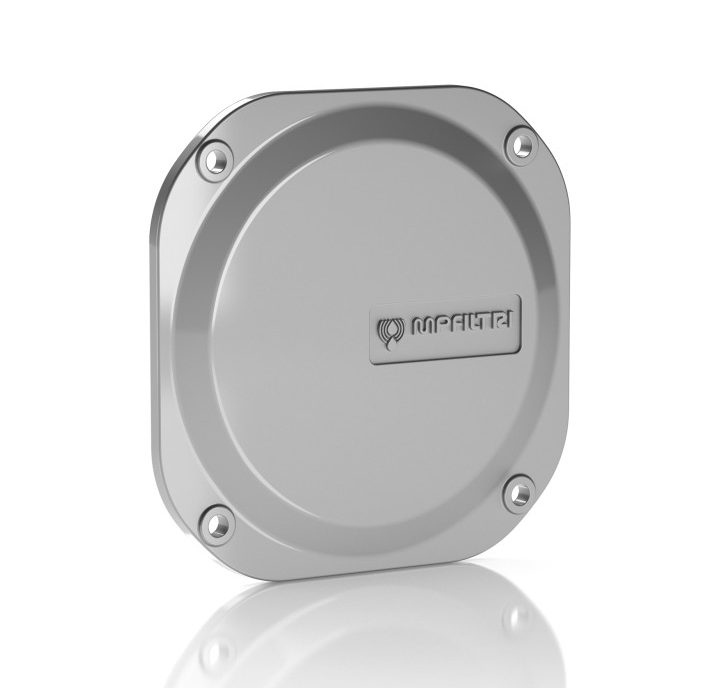

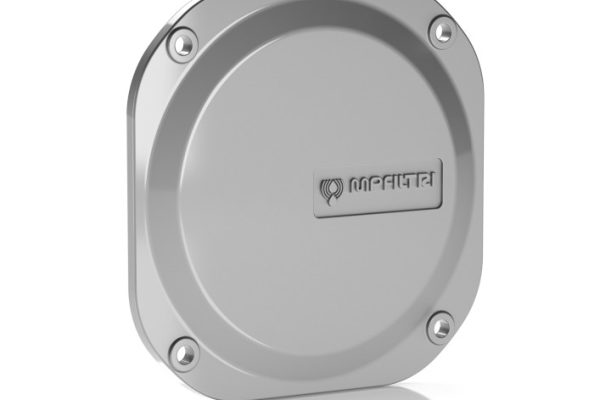

Access covers

These pressure die-cast aluminium alloy doors offer superior mechanical strength and are manufactured to DIN 24339 standard. They provide easy access to the inside of the oil tank for inspection and cleaning purposes.

On request and for small quantities, subject to approval, inspection doors can be supplied with: –

• Customer logo
• Hole cut for visual level indicator
• Hole cut for visual and electrical level indicator
• Oil sample plug

Compatibility with Fluids

Mineral oils types HH-HL-HM-HR-HV, to ISO 6743/4 standard

Water based emulsions types HFAE-HFAS, to ISO 6743/4 standard

Water glycol type HFC, to ISO 6743/4 standard: ask for anodised version

Materials

Cleaning covers: pressure die-cast aluminium alloy Seal: NBR 70 Shore A

Temperature

From -30 °C to +80 °C
