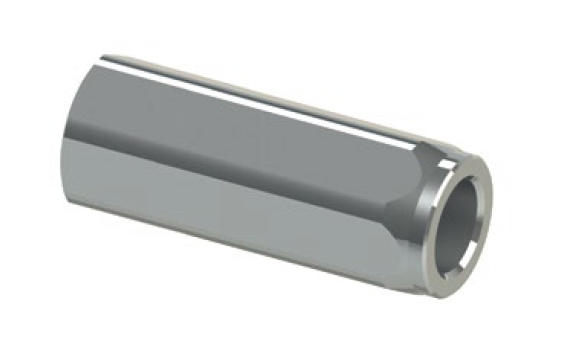

Inline Check
- Mineral oil: ISO 6743/4 (DIN 51524)
- Oil viscosity: 15–250 mm²/s (15 to 250 cSt)
- Max contamination index with filter: ISO 4406:1999 Class 19/17/14
- Oil temperature: -20°C +80°C (-4°F + 176°F)
- Ambient temperature: -20°C +50°C (-4°F + 122°F)
A filter is required to protect the valve. Recommended filtration level: 15 μm
Product Specification Documents
Showing 11 of 11 products
| Item No. | Name | Max. flow (lpm) | Max. pressure (bar) | Size (BSP) | Stock | Price | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
VUN-120-SF-0.5 | M/M ADAPTOR CHECK VALVES – 0.5 BAR | 30 | 500 | 1/2" | In Stock | £8.84 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUN-140-SF-0.5 | M/M ADAPTOR CHECK VALVES – 0.5 BAR | 5 | 500 | 1/4" | In Stock | £7.10 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUN-380-SF-0.5 | M/M ADAPTOR CHECK VALVES – 0.5 BAR | 15 | 500 | 3/8" | In Stock | £7.56 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-100-SP-0.5 | 1″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 150 | 350 | 1" | In Stock | £24.63 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-112-SP-0.5 | 1 1/2″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 300 | 350 | 1 1/2" | In Stock | £57.40 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-114-SP-0.5 | 1 1/4″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 200 | 350 | 1 1/4" | In Stock | £48.71 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-120-SP-0.5 | 1/2″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 50 | 400 | 1/2" | In Stock | £11.05 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-140-SP-0.5 | 1/4″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 15 | 400 | 1/4" | In Stock | £7.56 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-200-SP-0.5 | 2″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 430 | 250 | 2" | In Stock | £93.01 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-340-SP-0.5 | 3/4″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 90 | 400 | 3/4" | In Stock | £16.61 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
|
VUR-380-SP-0.5 | 3/8″ BSP POPPET TYPE CHECK VALVE – 0.5 BAR | 30 | 400 | 3/8" | In Stock | £9.71 exc. VAT | View | ||
Symbol filesStandardised hydraulic symbols for this part number, as defined by the International Standards Organisation - ISO 1219-1:2012
|
||||||||||
