Hydrastore

Over Centre Valve

  • Mineral oil: ISO 6743/4 (DIN 51524)
  • Oil viscosity: 15–250 mm²/s (15 to 250 cSt)
  • Max contamination index with filter: ISO 4406:1999 Class 19/17/14
  • Oil temperature: -20°C +80°C (-4°F + 176°F)
  • Ambient temperature: -20°C +50°C (-4°F + 122°F)

A filter is required to protect the valve. Recommended filtration level: 15 μm

Product Specification Documents

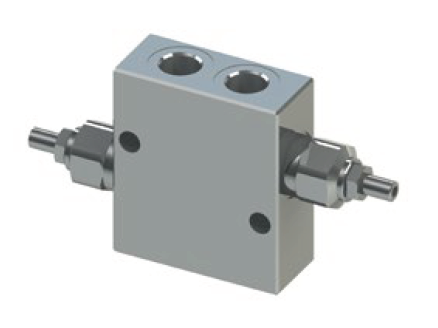

Dual Over Centre Valve - VBCD - For Open Centre illustration

Showing 8 of 8 products

    Filters

    Max Flow (lpm)

    Max Pressure (bar)

    Size (BSP)

    Price

    Category

Image Item No. Name Max. flow (lpm) Max. pressure (bar) Size (BSP) Stock Price Buy View Symbol files
1/2″ BPS DUAL OVER CENTRE VALVE 60 – 350 BAR VBCD-120-2-S 1/2″ BPS DUAL OVER CENTRE VALVE 60 – 350 BAR 60 350 1/2" In Stock £77.06 exc. VAT
View
3/8″ BSP DUAL OVER CENTRE VALVE 60 – 350 BAR VBCD-380-2-S 3/8″ BSP DUAL OVER CENTRE VALVE 60 – 350 BAR 40 350 3/8" In Stock £69.06 exc. VAT
View

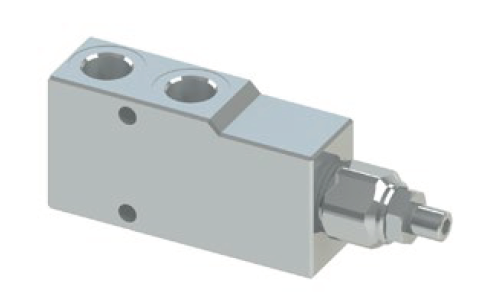

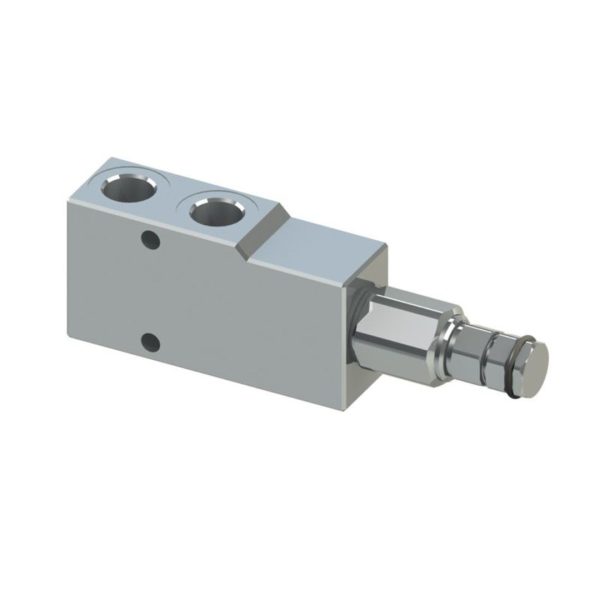

1/2″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR OPEN VBCL-120-1-S 1/2″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR OPEN 60 350 1/2" In Stock £50.88 exc. VAT
View
3/8″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR OPEN VBCL-380-1-S 3/8″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR OPEN 40 350 3/8" In Stock £43.31 exc. VAT
View
1/2″ BSP DUAL CROSS LINE RELIEF VALVES 20-210 BAR VBDC-120-2 1/2″ BSP DUAL CROSS LINE RELIEF VALVES 20-210 BAR 40 350 1/2" In Stock £44.49 exc. VAT
View
3/8″ BSP DUAL CROSS LINE RELIEF VALVES 20-210 BAR VBDC-380-2 3/8″ BSP DUAL CROSS LINE RELIEF VALVES 20-210 BAR 40 350 3/8" In Stock £44.49 exc. VAT
View
1/2″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR CLOSE VCCL-120-1-S 1/2″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR CLOSE 60 350 1/2" In Stock £57.75 exc. VAT
View
3/8″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR CLOSE VCCL-380-1-S 3/8″ BSP SINGLE OVER CENTRE VALVE 30-210 BAR CLOSE 40 350 3/8" In Stock £53.55 exc. VAT
View
