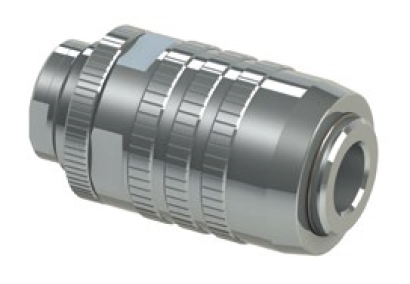

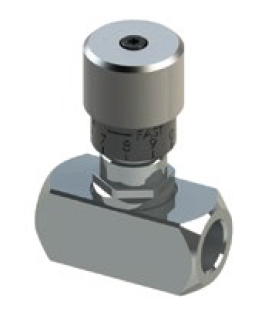

Inline FCV

Mineral oil: ISO 6743/4 (DIN 51524)
Oil viscosity: 15–250 mm²/s (15 to 250 cSt)
Max contamination index with filter: ISO 4406:1999 Class 19/17/14
Oil temperature: -20°C +80°C (-4°F + 176°F)
Ambient temperature: -20°C +50°C (-4°F + 122°F)

A filter is required to protect the valve. Recommended filtration level: 15 μm

Product Specification Documents

Unidirectional Flow Control Valve - STUF-BSP illustration

Showing 23 of 23 products

Item No.	Name	Max. flow (lpm)	Max. pressure (bar)	Size (BSP)	Stock	Price	View
STBF-100	1″ BSP BIDIRECTIONAL FLOW CONTROL VALVE	150	400	1"	In Stock	£55.84 exc. VAT	View
STBF-120	1/2″ BSP BIDIRECTIONAL FLOW CONTROL VALVE	50	400	1/2"	In Stock	£21.87 exc. VAT	View
STBF-140	1/4″ BSP BIDIRECTIONAL FLOW CONTROL VALVE	15	400	1/4"	In Stock	£17.40 exc. VAT	View
STBF-340	3/4″ BSP BIDIRECTIONAL FLOW CONTROL VALVE	80	400	3/4"	In Stock	£40.71 exc. VAT	View
STBF-380	3/8″ BSP BIDIRECTIONAL FLOW CONTROL VALVE	30	400	3/8"	In Stock	£17.81 exc. VAT	View
STUF-100	1″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	150	400	1"	In Stock	£67.29 exc. VAT	View
STUF-112	1 1/2″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	300	350	1 1/2"	In Stock	£155.30 exc. VAT	View
STUF-114	1 1/4″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	200	350	1 1/4"	In Stock	£119.23 exc. VAT	View
STUF-120	1/2″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	50	400	1/2"	In Stock	£24.58 exc. VAT	View
STUF-140	1/4″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	15	400	1/4"	In Stock	£20.10 exc. VAT	View
STUF-340	3/4″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	80	400	3/4"	In Stock	£48.27 exc. VAT	View
STUF-380	3/8″ BSP UNDIRECTIONAL FLOW CONTROL VALVE	30	400	3/8"	In Stock	£20.10 exc. VAT	View
VBRF-120	1/2″ BSP FLOW CONTROL VALVE- BARREL TYPE	45	350	1/2"	In Stock	£27.31 exc. VAT	View
VBRF-140	1/4″ BSP FLOW CONTROL VALVE- BARREL TYPE	15	350	1/4"	In Stock	£24.07 exc. VAT	View
VBRF-340	3/4″ BSP FLOW CONTROL VALVE- BARREL TYPE	85	300	3/4"	In Stock	£46.27 exc. VAT	View
VBRF-380	3/8″ BSP FLOW CONTROL VALVE- BARREL TYPE	30	350	3/8"	In Stock	£25.34 exc. VAT	View
VRC-120	1/2″ BSP PRESSURE COMPENSATED FLOW CONTROL VALVE	33	250	1/2"	In Stock	£49.14 exc. VAT	View
VRC-140	1/4″ BSP PRESSURE COMPENSATED FLOW CONTROL VALVE	10	250	1/4"	In Stock	£41.46 exc. VAT	View
VRC-380	3/8″ BSP PRESSURE COMPENSATED FLOW CONTROL VALVE	18	250	3/8"	In Stock	£41.46 exc. VAT	View
VURF-120	1/2″ BSP FLOW CONTROL VALVE-BARREL TYPE	45	350	1/2"	In Stock	£30.82 exc. VAT	View
VURF-140	1/4″ BSP FLOW CONTROL VALVE-BARREL TYPE	15	350	1/4"	In Stock	£25.34 exc. VAT	View
VURF-340	3/4″ BSP FLOW CONTROL VALVE-BARREL TYPE	85	300	3/4"	In Stock	£50.43 exc. VAT	View
VURF-380	3/8″ BSP FLOW CONTROL VALVE-BARREL TYPE	30	350	3/8"	In Stock	£28.26 exc. VAT	View
